PIR Sensor SPIR1 For Home Assistant By SCREEK (ESP32-C3 + SR602)
PIR Sensor SPIR1 For Home Assistant By SCREEK (ESP32-C3 + SR602)
Couldn't load pickup availability
Shipping Discount in - $5 shipping worldwide with no quantity limit.
Document, Firmware Update: https://screek.io/spir1
Join our community and explore new sensors: Facebook Group, Reddit Group, Discord
We are happy to share a new sensor of ours, which is a pyroelectric based body detector, SPIR1.
We often receive suggestions to add pyro-infrared to radar sensors, and now we have decided to launch it as a standalone sensor first.
Principle of operation
PIR means Passive Infra-Red sensor which is passive infra-red sensor, it passes infra-red rays of 36.5 degree infra-red wavelength through a filter to detect active human targets.
Features
- Compact size
- TYPE-C USB powered
- ESPHOME integrated into HomeAssistant for convenience.
Product Specifications

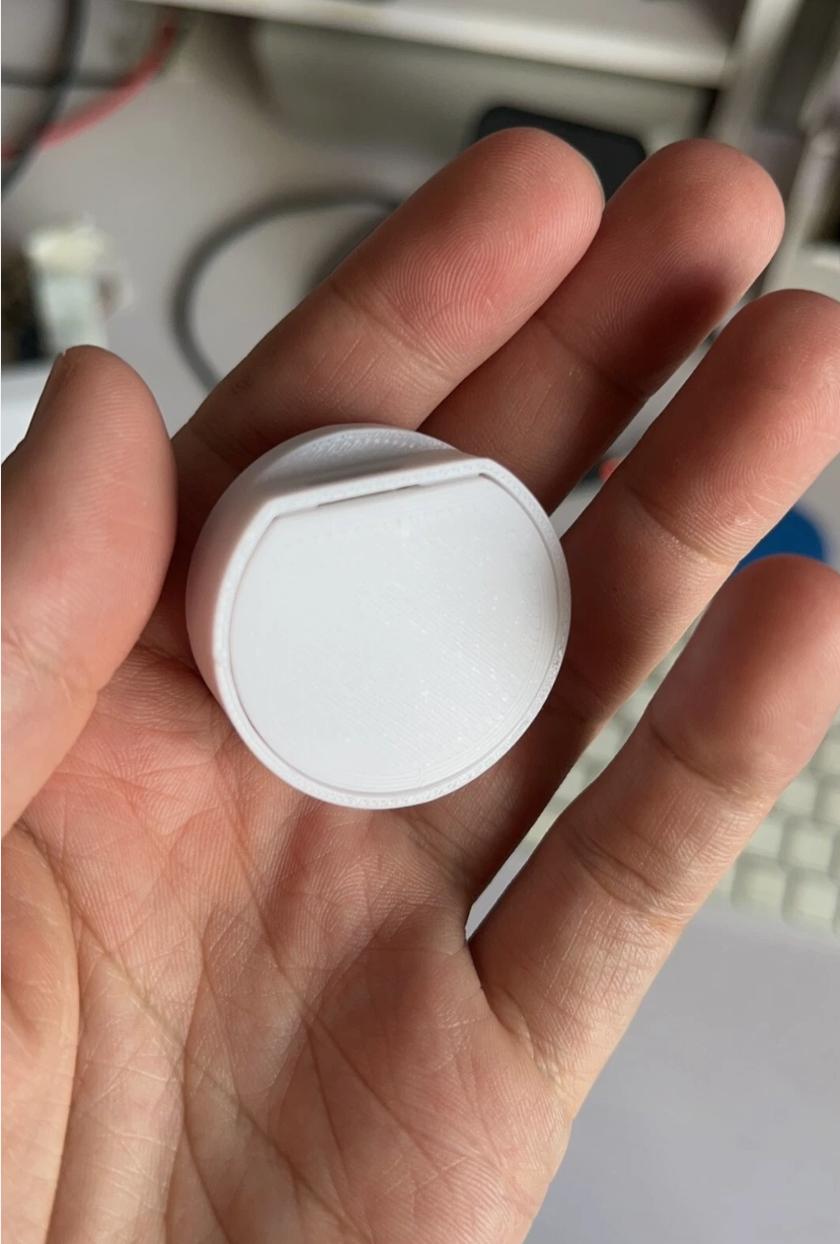

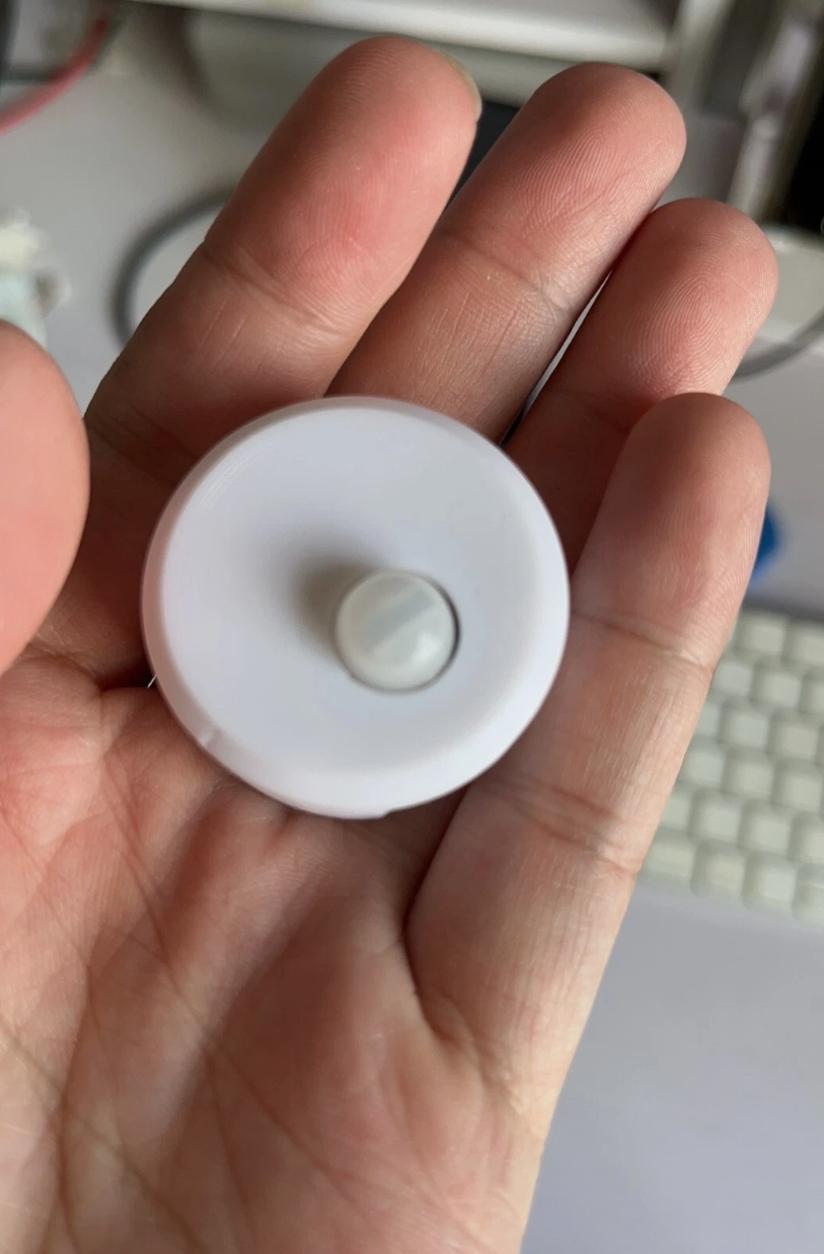

- Sensor volume: 34mm diameter, 15mm height, 21mm height with IR lens.
- Blocking time: 2 seconds, 2 seconds off after triggering.
- Detection distance: 0-3.5m (maximum 5m)
- Sensor Model: SR602
- Firmware system: ESPHome
- Power supply: TYPE-C power supply, 5V 1A.
Application Scenarios
Used in conjunction with our radar sensors, it can reduce certain unnecessary interference and realize the activation of automation when IR is triggered and the shutdown of automation when the radar has no target.
Frequently Asked Questions

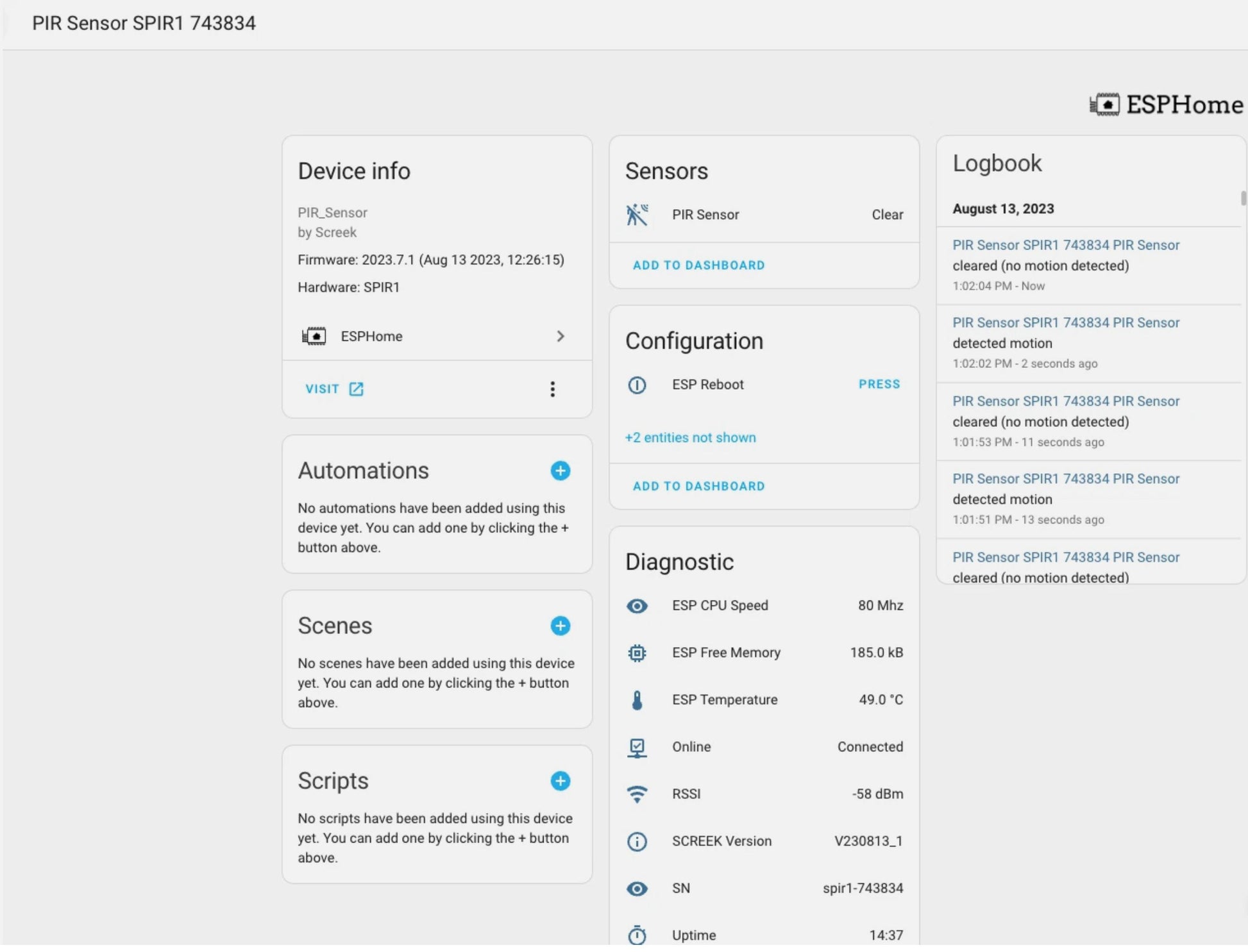

How do I connect to HomeAssistant?
After configuring the device to the network via a hotspot, the device can be automatically discovered in HomeAssistant.
Do I need to install ESPHome addon?
No, the firmware is implemented using ESPHome, but it is simplified the whole connection process, just need to configure the network, join the same limitation network as HomeAssistant will discover the device.
